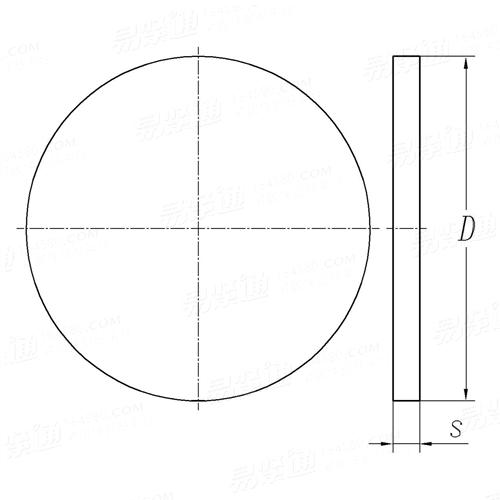

墊片 HB 1- 509 - 1983
| 選擇規格尺寸 點擊↓ 6 8 10 12 14 16 18 20 22 25 28 30 32 35 38 40 42 45 48 50 55 60 65 70 75 80 85 90 |
尺寸單位:
mm |
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
| ①,確定其它材料制的墊片質量時，應將相同尺寸的鋼制墊片質量乘以修正系數求得。 LF21-M：0.348 H62-M：1.1 T4-M：1.14 Pb2：1.45 ②,鋼20，30CrMnSiA限用厚度：0.5~6mm 1Cr18Ni9Ti，Pb2限用厚度：0.5~3mm LF21-M，H62-M，T4-M限用厚度：0.5~5mm ③,技術條件按 HB 5856-84 |
