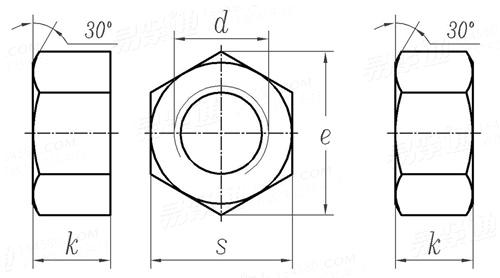

英制六角螺母 - 粗制 [Table 3] BS 916 - 1953

選擇規格尺寸點擊↓

1/4

5/16

3/8

7/16

1/2

9/16

5/8

3/4

7/8

1-1/8

1-1/4

(1-3/8)

1-1/2

(1-5/8)

1-3/4

2-1/4

2-1/2

2-3/4

(3-1/4)

3-1/2

(3-3/4)

4-1/2

5-1/2

括號內尺寸為非優選

尺寸單位: inch

英標BS 916 - 1953 BS916 916BS 英制六角螺母 - 粗制 [Table 3]

掃一掃分享

單重計算公差

螺紋尺寸
d

1/4

5/16

3/8

7/16

1/2

9/16

5/8

3/4

7/8

1-1/8

1-1/4

(1-3/8)

1-1/2

(1-5/8)

PP	牙數/英寸	BSW
		BSF
s	最大值
	最小值
e	最大值
k	最大值
	最小值

20	18	16	14	12	12	11	10	9	8	7	7	6	6	5
26	22	20	18	16	16	14	12	11	10	9	9	8	8	8
0.445	0.525	0.600	0.710	0.820	0.920	1.010	1.200	1.300	1.480	1.670	1.860	2.050	2.220	2.410
0.435	0.515	0.585	0.695	0.800	0.900	0.985	1.175	1.270	1.450	1.640	1.815	2.005	2.175	2.365
0.51	0.61	0.69	0.82	0.95	1.06	1.17	1.39	1.50	1.71	1.93	2.15	2.37	2.56	2.78
0.220	0.270	0.332	0.395	0.467	0.530	0.602	0.728	0.810	0.935	1.060	1.205	1.330	1.455	1.580
0.200	0.250	0.312	0.375	0.437	0.500	0.562	0.687	0.750	0.875	1.000	1.125	1.250	1.375	1.500

螺紋尺寸
d

1-3/4

2-1/4

2-1/2

2-3/4

(3-1/4)

3-1/2

(3-3/4)

4-1/2

5-1/2

PP	牙數/英寸	BSW
		BSF
s	最大值
	最小值
e	最大值
k	最大值
	最小值

5	4.5	4	4	3.5	3.5	3.25	3.25	3	3	2.875	2.75	2.625	2.5
7	7	6	6	6	5	5	4.5	4.5	4.5	4	4	4	4
2.580	2.760	3.150	3.550	3.890	4.180	4.530	4.850	5.180	5.550	6.380	7.300	8.350	9.450
2.520	2.700	3.090	3.490	3.830	4.080	4.430	4.750	5.080	5.450	6.255	7.175	8.225	9.325
2.98	3.19	3.64	4.10	4.49	4.83	5.23	5.60	5.98	6.41	7.37	8.43	9.64	10.91
1.725	1.850	1.975	2.225	2.475	2.775	3.025	3.275	3.525	3.775	4.200	4.700	5.200	5.700
1.625	1.750	1.875	2.125	2.375	2.625	2.875	3.125	3.375	3.625	4.000	4.500	5.000	5.500
