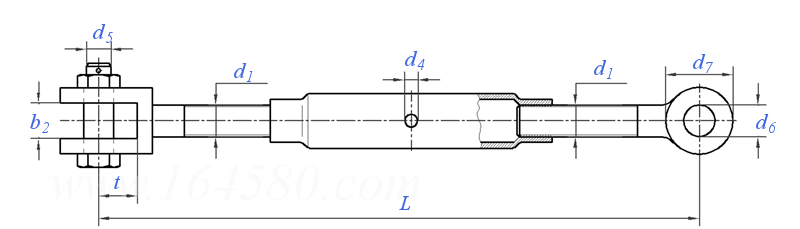

D型花籃 DIN 82004 - 1972

選擇規格尺寸點擊↓

0.4

0.6

1.6

2.5

尺寸單位: mm

德標DIN 82004 - 1972 DIN82004 82004DIN D型花籃

掃一掃分享

公差

規格

0.4

0.6

1.6

2.5

允許載荷 /KN
b₂
d₁
d₄
d₅	最大值=公稱
	最小值
d₆
d₇
L	最大值
t

4	6.3	10	16	20	25	32	40	50
12	16	19	23	26	29	32	35	3
M12	M16	M18	M22	M24	M27	M30	M33	M36
12	12	12	14	14	14	18	18	18
10	12	16	20	22	24	27	30	36
9.78	11.73	15.73	19.67	21.67	23.67	26.67	29.67	35.61
11.5	14	18	23	25	27	30	33	39
22	28	35	45	50	55	60	65	75
379	419	469	514	556	599	640	682	736
15	18	23	28	31	34	36	39	46

規格

允許載荷 /KN
b₂
d₁
d₄
d₅	最大值=公稱
	最小值
d₆
d₇
L	最大值
t

63	80	100	125	160	200	250	320
45	49	58	64	70	74	80	90
M42	M45	M52	M56	M64	M72×6	M76×6	M80×6
22	22	22	26	26	26	33	33
39	45	48	52	60	68	72	80
38.61	44.61	47.61	51.54	59.54	67.54	71.54	79.54
42	48	52	56	65	74	78	86
85	95	110	120	130	140	150	170
812	901	985	1072	1152	1236	1323	1420
51	56	63	70	75	80	87	97

同版本產品組

采用標準

DIN 82004 - 1972

花籃套筒

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍鎘、復合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
