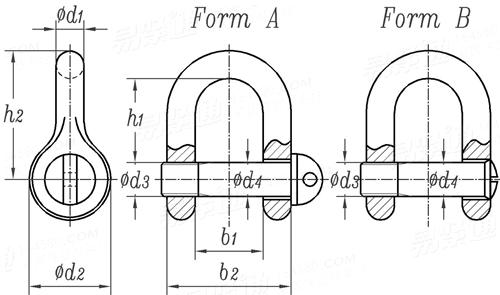

優質非合金鋼D形直卸扣 DIN 82101 - 2005

選擇規格尺寸點擊↓

0.06

0.1

0.16

0.25

0.4

0.6

1.6

2.5

尺寸單位: mm

德標DIN 82101 - 2005 DIN82101 82101DIN 優質非合金鋼D形直卸扣

掃一掃分享

公差公制螺紋極限尺寸米/英制螺紋對照

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

規格

0.06

0.1

0.16

0.25

0.4

0.6

1.6

2.5

類型
b₁
b₂
d₁
d₂
d₃
d₄
h₁
h₂
千件重kg	A
	B

A	A	A	A	A,B	A,B	A,B	A,B	A,B	A,B
6	7	8	11	14	17	21	27	30	33
13	15	18	25	30	37	47	61	68	75
3.5	4	5	7	8	10	13	17	19	21
8	10	12	16	20	24	32	40	44	48
M4	M5	M6	M8	M10	M12	M16	M20	M22	M24
4	5	6	8	10	12	16	20	22	24
12	15.5	18	24	30	36	49	61	67	73
18	23	27	36	45	54	72	90	99	108
7	13	24	45	9	170	360	750	1000	1320
-	-	-	-	85	160	350	730	970	1280

規格

類型
b₁
b₂
d₁
d₂
d₃
d₄
h₁
h₂
千件重kg	A
	B

A,B	A,B	A,B	A,B	A,B	A,B	A,B	A,B	A,B
38	42	47	53	60	66	73	81	90
86	96	107	121	136	150	167	185	206
24	27	30	34	38	42	47	52	58
54	60	72	78	90	96	104	120	136
M27	M30	M36	M39	M45	M48	M52	M60	M68
27	30	36	39	45	48	52	60	68
83.5	91	111	119.5	139.5	147	158	185	211
123	135	162	176	203	216	234	270	306
1800	2400	3900	5300	7900	10000	13000	18500	27500
1700	2300	3700	5100	7600	9700	12700	18100	26800

替代列表

DIN 82101 - 1976 DIN 82101 - 2005

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍鎘、復合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
