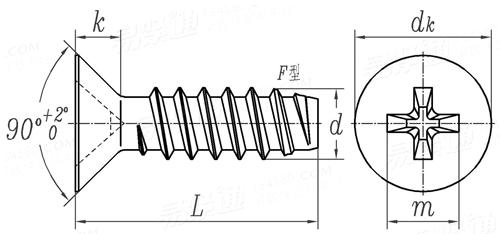

十字槽沉頭自攻螺釘 F型 Q 278

選擇規格尺寸點擊↓

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

尺寸單位: mm

汽標代號Q 278 Q278 278Q 十字槽沉頭自攻螺釘 F型

掃一掃分享

單重計算公差

螺紋規格
d

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

P	螺距
d_k	理論值	最大值
	實際值	最大值
		最小值
k	最大值
槽號
m	參考
深度	十字槽	最大值
		最小值

1.1	1.3	1.4	1.6	1.8	1.8
6.3	8.2	9.4	10.4	11.5	12.6
5.5	7.3	8.4	9.3	10.3	11.3
5.2	6.9	8	8.9	9.9	10.9
1.7	2.35	2.6	2.8	3	3.15
1	2	2	2	3	3
3.2	4.4	4.6	5.2	6.6	6.8
2.1	2.4	2.6	3.2	3.3	3.5
1.7	1.9	2.1	2.7	2.8	3

采用標準

GB /T 846 - 1985

十字槽沉頭自攻釘

技術條件和引用標準

螺紋
機械性能
公差	產品等級
	標準
十字槽	型式
	標準
表面處理	種類
	標準
驗收及包裝

GB/T 5280

GB/T 3098.5

GB/T 3103.1

GB/T 944.1

① 鍍鋅鈍化 Fe/Zn8；② 非電解鋅片涂層

QC/T 625

GB/T 90.1、GB/T 90.2

引用參考

鍍鋅、鍍鎳、鍍鎘、復合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 5280 - 2002

自攻螺釘用螺紋

注：技術數據僅供參考，請以官方原件為準！
