中部帶1/2全長平行溝槽的槽銷 ISO 8743 - 1997

選擇規格尺寸點擊↓

Φ1.5

Φ2

Φ2.5

Φ3

Φ4

Φ5

Φ6

Φ8

Φ10

Φ12

Φ16

Φ20

Φ25

尺寸單位: mm

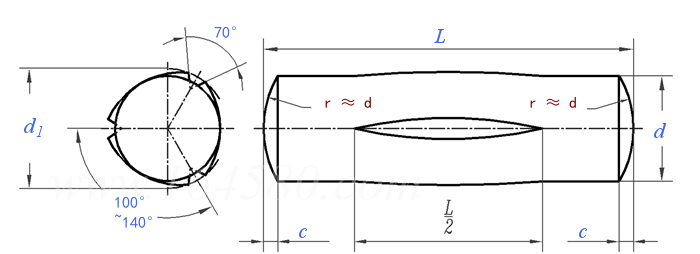

國際ISO 8743 - 1997 ISO8743 8743ISO 中部帶1/2全長平行溝槽的槽銷

模型下載

掃一掃分享

單重計算公差

公稱直徑
d

Φ1.5

Φ2

Φ2.5

Φ3

Φ4

Φ5

Φ6

Φ8

Φ10

Φ12

Φ16

Φ20

Φ25

d	最大值
	最小值
c
最小剪切載荷,雙面剪,kN
d₁	公差

1.5	2	2.5	3	4	5	6	8	10	12	16	20	25
1.475	1.975	2.475	2.975	3.925	4.925	5.925	7.91	9.91	11.89	15.89	19.87	24.87
0.2	0.25	0.3	0.4	0.5	0.63	0.8	1	1.2	1.6	2	2.5	3
1.6	2.84	4.4	6.4	11.3	17.6	25.4	45.2	70.4	101.8	181	283	444
+0.05	+0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.05	±0.1	±0.1	±0.1	±0.1

d₁ / 公稱

①,槽角a 應根據材料的變形量由工藝確定；對易切鋼制成的槽銷，a≈70°。

替代列表

暫無

等效標準

國標 GB	國際 ISO	德標 DIN	歐標 EN
GB /T 13829.4	ISO 8743	DIN EN ISO 8743	EN ISO 8743

以上有部分標準可能為近似等效，如有異議以標準原件為準

工藝相關

ISO 3269

緊固件驗收檢查

ISO 3506-1

緊固件 - 耐腐蝕不銹鋼緊固件的機械性能 Part 1: 螺栓、螺釘和螺柱

技術條件和引用標準

材料 ^①

鋼

奧氏體不銹鋼

硬度
溝槽
表面處理
表面缺陷
抗剪強度試驗
驗收及包裝
備注

硬度 125~245 HV30	A1（ISO 3506-1）硬度 210~280 HV30
槽的形狀由生產者任選
Plain, i.e. pins to be supplied in natural finish treated with a protective lubricant, unless otherwise specified by agreement between customer and suppller. Preferred coatings are black oxide, phosphate coating or zinc plating with chromate conversion coating (see ISO 9717 and ISO 4042). 其他表面鍍層或表面處理應由供需雙方協議。所有公差僅適用于涂、鍍前的公差。	Plain, i.e. pins to be supplied in natural finish.
不允許有不規則的和有害的缺陷。
ISO 8749	-
ISO 3269
① 其他材料由供需雙方協議

引用參考

GB /T 1172

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍鎘、復合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
