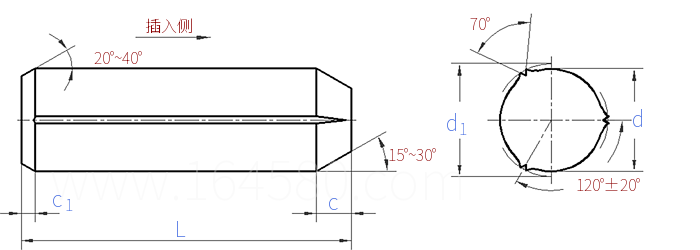

帶倒角及全長平行溝槽槽銷-倒角端 ISO 8740 (CH) - 2025
| 選擇規格尺寸 點擊↓ (Φ1) Φ1.5 Φ2 Φ2.5 Φ3 (Φ3.5) Φ4 Φ5 Φ6 (Φ7) Φ8 (Φ9) Φ10 Φ12 (Φ14) Φ16 (Φ18) Φ20 Φ25 括號內尺寸為非優選
|
尺寸單位:
mm |
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ①,槽角≈70°為參考值，詳見 ISO 13669。 ②,除非在訂購時另有約定，在制造時銷應采用圓角端。 |
同版本產品組
技術條件和引用標準
| 材料 ① |
|
||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||
注：技術數據僅供參考，請以官方原件為準！
