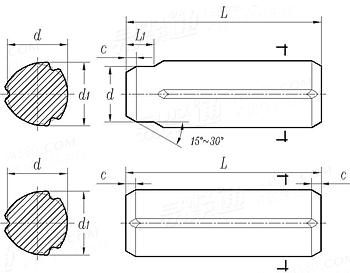

米制全長平行溝槽槽銷 TYPE 39 / TYPE 40 [Table 3] ASME/ANSI B 18.8.100M (B18.8.9M T3) - 2000 (R2005)

選擇規格尺寸點擊↓

1.5

2.5

ASME/ANSI B 18.8.100M (B18.8.9M T3) - 2000 (R2005) 米制全長平行溝槽槽銷 TYPE 39 / TYPE 40 [Table 3]

尺寸單位: mm

美標ASME/ANSI B18.8.100M (B18.8.9M T3) - 2 米制全長平行溝槽槽銷 TYPE 39 / TYPE 40 [Table 3]

掃一掃分享

公差

公稱直徑
d

1.5

2.5

d	最大值
d	最小值
P	最大值
P	最小值
c	參考
d₁	公差

1.5	2	2.5	3	4	5	6	8	10	12
1.46	1.96	2.46	2.96	3.925	4.925	5.925	7.91	9.91	11.89
2	2	2.5	2.5	3	3	4	4	5	5
1	1	1.5	1.5	2	2	3	3	4	4
0.2	0.25	0.3	0.4	0.5	0.63	0.8	0.8	0.8	0.8
0.04	0.05	0.05	0.07	0.07	0.07	0.07	0.08	0.08	0.1

d₁

同版本產品組

ASME/ANSI B 18.8.100M (B18.8.4M) - 2000 (R2005)

米制彈性圓柱銷

供應商(1)

ASME/ANSI B 18.8.100M (B18.8.3M-S) - 2000 (R2005)

米制標準型卷制彈性圓柱銷

供應商(4)

ASME/ANSI B 18.8.100M (B18.8.3M-L) - 2000 (R2005)

米制輕型卷制彈性圓柱銷

供應商(1)

ASME/ANSI B 18.8.100M (B18.8.3M-H) - 2000 (R2005)

米制重型卷制彈性圓柱銷

供應商(1)

ASME/ANSI B 18.8.100M (B18.8.9M T5) - 2000 (R2005)

米制半長溝槽槽銷 TYPE 43-1 / TYPE 43-2 [TABLE 5]

ASME/ANSI B 18.8.100M (B18.8.9M T7) - 2000 (R2005)

米制半長錐槽槽銷 TYPE 45 [Table 7]

ASME/ANSI B 18.8.100M (B18.8.9M T6) - 2000 (R2005)

米制全長錐槽槽銷 Type 44 [Table 6]

ASME/ANSI B 18.8.100M (B18.8.9M T3) - 2000 (R2005)

米制全長平行溝槽槽銷 TYPE 39 / TYPE 40 [Table 3]

ASME/ANSI B 18.8.100M (B18.8.9M T9) - 2000 (R2005)

米制沉頭槽銷 TYPE 47-1 TYPE 47-2 [Table 9]

ASME/ANSI B 18.8.100M (B18.8.5M) - 2000 (R2005)

米制淬硬切削圓柱銷

ASME/ANSI B 18.8.100M (B18.8.9M T8) - 2000 (R2005)

米制圓頭槽銷 TYPE 46-1 TYPE 46-2 [Table 8]

ASME/ANSI B 18.8.100M (B18.8.9M A) - 2000 (R2005)

米制半長倒錐溝槽槽銷 TYPE 41

ASME/ANSI B 18.8.100M (B18.8.9M T4) - 2000 (R2005)

米制中部槽長1/3全長 平行溝槽槽銷 TYPE 42 [TABLE 4]

ASME/ANSI B 18.8.100M (B18.8.9M T4) - 2000 (R2005)

米制中部帶1/2全長 平行溝槽槽銷 TYPE 43 [TABLE 4]

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍鎘、復合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
