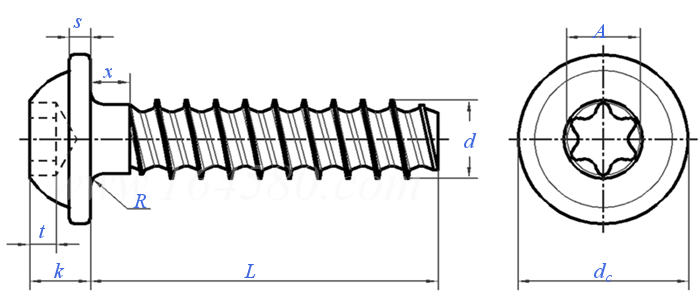

塑料用梅花槽圓頭帶介自攻螺釘 [PT] YJT 4025

查看供應商 YJT標準體系

選擇規格尺寸點擊↓

尺寸單位: mm

標準YJT 4025 YJT4025 4025YJT 塑料用梅花槽圓頭帶介自攻螺釘 [PT]

掃一掃分享

公差

螺紋規格

P	螺距
d
d_c	最大值
k
s
R	最大值
槽號
A	參考值
t	最小值
t	最大值
x	最大值

0.78	0.85	0.95	1.12	1.29	1.46	1.63	1.80	2.14	2.48	2.82
2.0	2.2	2.5	3.0	3.5	4.0	4.5	5.0	6.0	7.0	8.00
4.5	5.0	5.5	6.5	7.5	9.0	10.0	11.0	13.5	15.5	18.0
1.6	1.6	1.9	2.3	2.7	3.1	3.2	3.5	4.2	4.9	5.6
0.6	0.6	0.7	0.8	0.9	1.0	1.1	1.2	1.4	1.6	1.8
0.35	0.35	0.4	0.5	0.5	0.6	0.6	0.7	0.8	0.9	1.0
6 IP	6 IP	8 IP	10 IP	15 IP	20 IP	20 IP	25 IP	30 IP	30 IP	40 IP
1.75	1.75	2.40	2.80	3.35	3.95	3.95	4.50	5.60	5.60	6.75
0.65	0.65	0.80	1.00	1.10	1.40	1.40	1.50	1.90	2.30	2.60
0.85	0.85	1.00	1.30	1.50	1.80	1.80	1.90	2.40	2.90	3.20
1.0	1.1	1.3	1.5	1.8	2.0	2.3	2.5	3.0	3.5	4.0

引用參考

鍍鋅、鍍鎳、鍍鎘、復合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 5280 - 2002

自攻螺釘用螺紋

注：技術數據僅供參考，請以官方原件為準！
