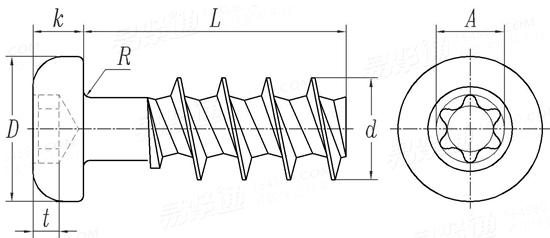

梅花槽盤頭自攻釘 YJT 4066

查看供應商 YJT標準體系

選擇規格尺寸點擊↓

同規格，其他部分尺寸不同

尺寸單位: mm

掃一掃分享

公差

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

螺紋規格

d
D
k
R
槽號
A	參考
t	最小值
	最大值

1.2	1.4	1.6	1.8	1.8	2	2.2	2.5
2.4	2.8	3.2	3.6	3.6	3.6	4	4.2
0.9	1	1.1	1.3	1.5	1.5	1.4	1.6
0.15	0.15	0.15	0.2	0.2	0.2	0.2	0.3
T3	T5	T6	T6	T6	T6	T6	T7
1.2	1.45	1.75	1.75	1.75	1.75	1.75	2.05
0.4	0.5	0.5	0.5	0.7	0.7	0.7	0.7
0.55	0.65	0.65	0.65	0.85	0.85	0.85	0.85

千件鋼制重≈kg

引用參考

鍍鋅、鍍鎳、鍍鎘、復合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 5280 - 2002

自攻螺釘用螺紋

注：技術數據僅供參考，請以官方原件為準！

告訴我在“易緊通”看到，將給您優惠

蘇州拓迅機電有限公司

聯系人：劉經理/張小姐移動電話： 13812753470/18913194587 電話：0512-69556519 微信號：13812753470

材質：碳鋼、不銹鋼；規格范圍：K20-K60；公稱長度：5-60mm；表面處理：環保藍白鋅、鋅鎳合金等，現貨庫存。

[詢價]
