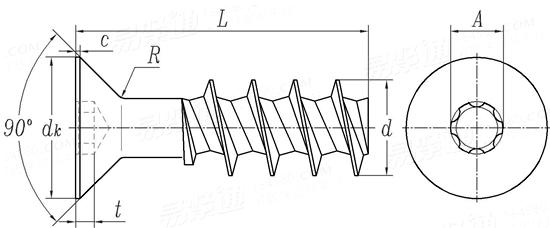

梅花槽沉頭自攻螺釘 YJT 4060

查看供應商 YJT標準體系

選擇規格尺寸點擊↓

100

尺寸單位: mm

掃一掃分享

單重計算公差

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

螺紋規格

100

d
d_k
c	最小值
	最大值
R
A	參考
t	最小值
	最大值

1.8	2	2.2	2.5	3	3.5	4	4.5	5	6	7	8	10
3.4	3.8	3.8	4.7	5.5	7.3	8.4	9	9.3	11.3	13.6	15.8	18.3
0.2	0.2	0.2	0.4	0.4	0.45	0.5	0.5	0.55	0.65	0.7	0.75	0.85
0.35	0.35	0.35	0.55	0.55	0.65	0.7	0.7	0.75	0.85	0.9	0.95	1.1
0.6	0.8	0.8	1	1.2	1.4	1.6	1.8	2	2.4	2.6	3.2	4.5
1.75	1.75	1.75	2.4	2.4	3.35	3.95	3.95	3.95	5.6	6.75	6.75	8.95
0.5	0.5	0.65	0.7	0.85	0.95	1.3	1.3	1.3	1.6	2.25	2.25	2.55
0.65	0.65	0.8	0.9	1.1	1.2	1.65	1.65	1.65	2.05	2.8	2.8	3.25

千件鋼制重≈kg

引用參考

鍍鋅、鍍鎳、鍍鎘、復合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 5280 - 2002

自攻螺釘用螺紋

注：技術數據僅供參考，請以官方原件為準！

告訴我在“易緊通”看到，將給您優惠

蘇州拓迅機電有限公司

聯系人：劉經理/張小姐移動電話： 13812753470/18913194587 電話：0512-69556519 微信號：13812753470

材質：碳鋼、不銹鋼；規格范圍：K20-K60；公稱長度：5-60mm；表面處理：環保藍白鋅、鋅鎳合金等，現貨庫存。

[詢價]

本頁面所載 YJT^? 標準編碼及相關內容版權歸易緊通所有，需經授權方可使用。
