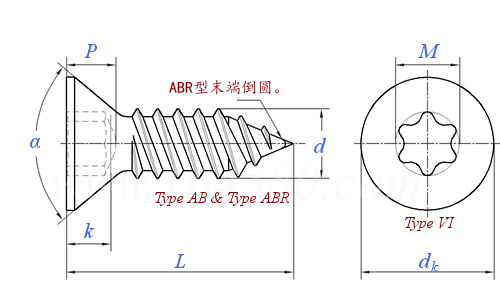

梅花槽82°沉頭 AB ABR自攻螺釘 ASME B 18.6.3 (H1B-VI+T1A) - 2024
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ①, 若以小數規定公稱直徑，應省略小數前和小數點后第四位的零。 ②,螺釘末端釘尖上不允許因螺紋輾壓而形成的虛尖，允許略帶圓弧或圓鈍形末端。 ③,小于等于8#的螺釘，螺紋牙頂平面寬度不應超過0.004in，大于8#的應不超過0.006in。 ④,正常情況下，當螺釘長度小于等于其公稱長度L0時應采用全螺紋，過渡螺紋長度應小于等于Y；若螺釘長度大于其公稱長度L0可采用半牙型式，但其螺紋長度應不小于b。 |
同版本產品組
長度公差
Tapping screws can be made to any length, but they are generally produced in fractional length increments of 1/16 in. for screws up to 1/2 in. long, 1/8 in. for screws over 1/2 in. through 1-1/2 in. long, 1/4 in. for screws over 1-1/2 in. through 3 in. long, and 1/2 in. for screws over 3 in. long.
類型 | 標稱螺釘長度 | 長度公差 |
A、AB、BP | ≤1 | ±0.03 |
＞1 | ±0.05 | |
B、BF、BT、C、D、F、G、T、TRS | ≤3/4 | -0.03 |
＞3/4,≤1-1/2 | -0.05 | |
＞1-1/2 | -0.06 |
注：技術數據僅供參考，請以官方原件為準！
