梅花槽盤頭自攻螺釘 JASO F 116 - 2005

選擇規格尺寸點擊↓

ST2

ST2.5

ST3

ST3.5

ST4.0

ST4.5

ST5

ST6

ST8

尺寸單位: mm

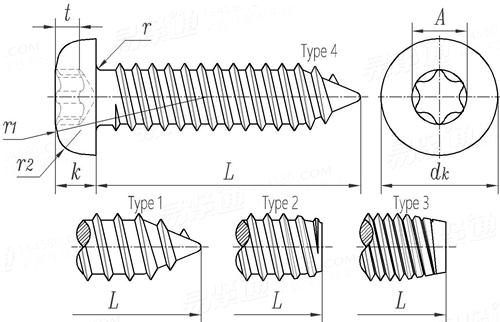

日本汽車工業協會標準JASO F116 - 2005 JASO116 116JA 梅花槽盤頭自攻螺釘

掃一掃分享

單重計算公差

螺紋尺寸
d

ST2 ^①

ST2.5 ^①

ST3

ST3.5

ST4.0

ST4.5

ST5

ST6

ST8

槽號
A
d_k	最大值=公稱
d_k	最小值
k	公稱
	最大值
	最小值
r₁	≈
r₂	≈
t	最大值
t	最小值
r	最大值

T6	T8	T10	T15	T20	T20	T25	T30	T40
1.727	2.367	2.794	3.327	3.911	3.911	4.483	5.575	6.705
3.5	4.5	5.5	6	7	8	9	10.5	14
3.1	4.1	5	5.5	6.5	7.4	8.4	9.8	13.2
1.3	1.7	2	2.3	2.6	2.9	3.3	3.9	5.2
1.4	1.8	2.15	2.45	2.75	3.05	3.45	4.1	5.4
1.2	1.6	1.85	2.15	2.45	2.75	3.15	3.7	5
4.5	6	7	8	9	11	12	14	18
0.6	0.8	1	1.1	1.3	1.5	1.6	1.9	2.6
0.65	0.85	1.05	1.2	1.4	1.4	1.6	1.9	2.6
0.5	0.7	0.85	1	1.2	1.2	1.4	1.65	2.35
0.3	0.3	0.4	0.4	0.5	0.5	0.6	0.7	0.9

①,ST2，ST2.5不適用于Type 1。

同版本產品組

JASO F 116 (T11) - 2005

引用參考

鍍鋅、鍍鎳、鍍鎘、復合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 5280 - 2002

自攻螺釘用螺紋

注：技術數據僅供參考，請以官方原件為準！
