梅花槽扁圓頭自攻螺釘 JASO F 116 - 2005

選擇規格尺寸點擊↓

ST2

ST2.5

ST3

ST3.5

ST4.0

ST4.5

ST5

ST6

ST8

尺寸單位: mm

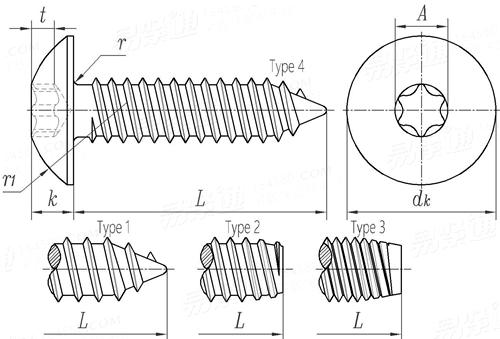

日本汽車工業協會標準JASO F116 - 2005 JASO116 116JA 梅花槽扁圓頭自攻螺釘

掃一掃分享

單重計算公差

螺紋尺寸
d

ST2 ^①

ST2.5 ^①

ST3

ST3.5

ST4.0

ST4.5

ST5

ST6

ST8

槽號
A
d_k	最大值=公稱
	最小值
k	公稱
	最大值
	最小值
r₁	≈
t	最大值
	最小值
r	最大值

T6	T8	T10	T15	T20	T20	T25	T30	T40
1.727	2.367	2.794	3.327	3.911	3.911	4.483	5.575	6.705
4.5	5.7	6.9	8.1	9.4	10.6	11.8	14	17.8
4.1	5.3	6.4	7.6	8.9	10	11.2	13.3	17
1.2	1.5	1.9	2.2	2.5	2.8	3.1	3.7	4.8
1.3	1.6	2.05	2.35	2.65	2.95	3.25	3.9	5
1.1	1.4	1.75	2.05	2.35	2.65	2.95	3.5	4.6
3	3.7	4.6	5.4	6.1	6.9	7.7	9.1	11.7
0.65	0.85	1.05	1.2	1.4	1.4	1.6	1.9	2.6
0.5	0.7	0.85	1	1.2	1.2	1.4	1.65	2.35
0.3	0.3	0.4	0.4	0.5	0.5	0.6	0.7	0.9

①,ST2，ST2.5不適用于Type 1。

同版本產品組

JASO F 116 (T11) - 2005

引用參考

鍍鋅、鍍鎳、鍍鎘、復合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 5280 - 2002

自攻螺釘用螺紋

注：技術數據僅供參考，請以官方原件為準！
