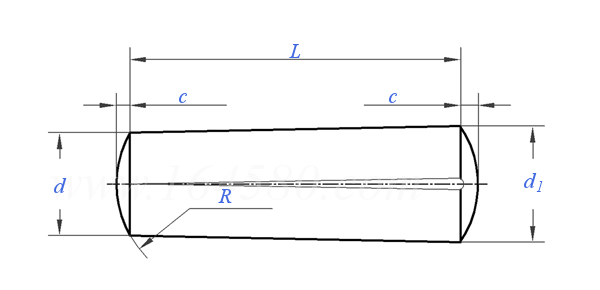

A型槽銷全長錐槽 [Table 6] ASME B 18.8.2 - 2000 (R2010)

選擇規格尺寸點擊↓

1/32

3/64

1/16

5/64

3/32

7/64

1/8

5/32

3/16

7/32

1/4

5/16

3/8

7/16

1/2

ASME B 18.8.2 - 2000 (R2010) A型槽銷全長錐槽 [Table 6]

尺寸單位: inch

美標ASME B18.8.2 - 2000 (R2010) ASME18.8.2 A型槽銷全長錐槽 [Table 6]

掃一掃分享

公差

公稱直徑

1/32

3/64

1/16

5/64

3/32

7/64

1/8

5/32

3/16

7/32

1/4

5/16

3/8

7/16

1/2

公稱直徑
d	最大值
	最小值
c	公稱
R	最大值
	最小值

0.0312	0.0469	0.0625	0.0781	0.0938	0.1094	0.1250	0.1563	0.1875	0.2188	0.2500	0.3125	0.3750	0.4375	0.5000
0.0312	0.0469	0.0625	0.0781	0.0938	0.1094	0.1250	0.1563	0.1875	0.2188	0.2500	0.3125	0.3750	0.4375	0.5000
0.0297	0.0454	0.0610	0.0766	0.0923	0.1074	0.1230	0.1543	0.1855	0.2168	0.2480	0.3105	0.3730	0.4355	0.4980
-	-	0.0065	0.0087	0.0091	0.0110	0.0130	0.0170	0.0180	0.0220	0.0260	0.0340	0.0390	0.0470	0.0520
-	-	0.088	0.104	0.135	0.150	0.166	0.198	0.260	0.291	0.322	0.385	0.479	0.541	0.635
-	-	0.068	0.084	0.115	0.130	0.146	0.178	0.240	0.271	0.302	0.365	0.459	0.521	0.615
